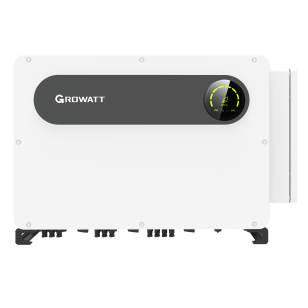

Growatt MAX 60KTL3 LV (AFCI) 3-fase omvormer
SKU: AE02913
Description
The Growatt MAX 60KTL3 LV (AFCI) three-phase inverter is a high-performance solution for installers working on medium to large commercial and industrial solar projects. This inverter accepts up to approximately 78 kW of maximum DC power from solar panels and delivers a 60 kW rated AC output, making it suited for demanding three-phase systems. With six MPPT trackers and up to twelve PV strings, you can efficiently design systems with varied roof orientations. Built-in AFCI protection helps reduce the risk of arc faults on the DC side, enhancing system safety. The Growatt MAX 60KTL3 LV features a wide DC voltage range up to 1100 V and an IP65 enclosure, ensuring reliable operation in diverse conditions.
For battery integration, this inverter is battery-ready when combined with compatible Growatt battery systems such as the APX series, allowing you to add energy storage and optimise self-consumption. Clear connections and intuitive monitoring via the Growatt platform help streamline installation, making your work as an installer more efficient.
Specifications
| Brand | GROWATT |
|---|---|
| Item no., supplier | MAX 60KTL3 LV (AFCI) |
| Usable | Benelux |
| Number of phases | 3 |
| Maximum DC power (W) | 90000 |
| DC connection | Devalan H4 |
| Maximum AC current (per phase) (A) | 96.6 |
| Maximum AC power (VA) | 66600 |
| Amount per pallet | 3 |
| Amount per box | 1 |
| Type of solar inverters | MID |
| Product warranty | 5 jaar |
| GTIN | 6975609727082 |
