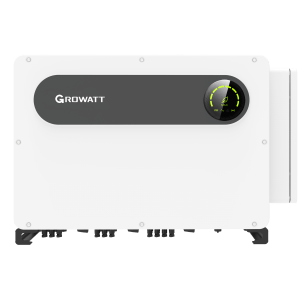

Growatt MAX 80KTL3 LV (AFCI) 3-fase omvormer
SKU: AE02915
Description
The Growatt MAX 80KTL3 LV (AFCI) three-phase inverter is built for installers working on large commercial solar energy systems. This inverter accepts up to approximately 104 kW of maximum DC power from solar panels and delivers a 80 kW rated AC output, making it well-suited for high-demand three-phase applications. It features 7 MPPT trackers with multiple string inputs, allowing flexible string configurations and improved energy harvest. The AFCI protection (arc fault circuit interrupter) enhances system safety by detecting and interrupting hazardous arc faults on the DC side. The MAX 80KTL3 LV supports a wide DC voltage range up to about 1100 V, has IP65 protection and built-in Type II SPD on both DC and AC sides.
For energy storage integration, this inverter is battery-ready with compatible Growatt battery systems. With clear connection points and smart monitoring capabilities via the Growatt platform, you can carry out installations and service more efficiently, making work easier for you as an installer.
Specifications
| Brand | GROWATT |
|---|---|
| Item no., supplier | MAX 80KTL3 LV (AFCI) |
| Usable | Benelux |
| Number of phases | 3 |
| Maximum DC power (W) | 120000 |
| DC connection | Devalan H4 |
| Maximum AC current (per phase) (A) | 128.8 |
| Maximum AC power (VA) | 88800 |
| Amount per pallet | 3 |
| Amount per box | 1 |
| Type of solar inverters | MAX |
| Product warranty | 5 jaar |
| GTIN | 6975609727099 |
