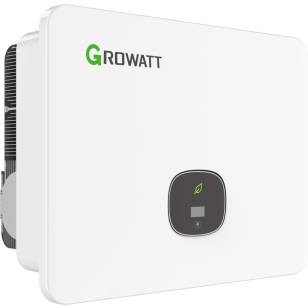

Growatt MID 50KTL3-X2 3-fase omvormer
SKU: AE02912
Description
The Growatt MID 50KTL3-X2 three-phase inverter is a robust solution for installers working on medium to large commercial solar energy systems. This inverter supports up to approximately 75 kW of maximum DC power from solar panels and delivers a 50 kW rated AC output, making it well-suited for high-demand three-phase configurations. It features four independent MPPT inputs for flexible string layouts and optimal energy harvest, with a wide DC voltage range from around 200 V to 1000 V and a high conversion efficiency up to about 98.8 %. The MID 50KTL3-X2 comes with an IP66 protection rating and comprehensive safety features, such as Type II surge protection on both DC and AC sides, along with smart monitoring options.
For battery integration, the inverter is compatible with the Growatt APX HV battery system, giving you room to add energy storage. With clear connections and easy monitoring via the Growatt platform, installation becomes more efficient, helping you as an installer save time and work more smoothly.
Specifications
| Brand | GROWATT |
|---|---|
| Item no., supplier | MID 50KTL3-X2 |
| Usable | Benelux |
| Number of phases | 3 |
| Maximum DC power (W) | 75000 |
| DC connection | Devalan H4 |
| Maximum AC current (per phase) (A) | 84.1 |
| Maximum AC power (VA) | 55500 |
| Amount per pallet | 10 |
| Amount per box | 1 |
| Type of solar inverters | MID |
| Product warranty | 5 jaar |
| GTIN | 6975609725774 |
