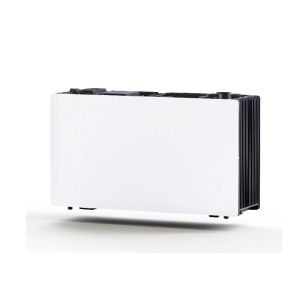

SolarEdge Nexis Battery Block 5kWh | Alius
SKU: AE03542 | NX-BLCK-5K-A-01
Description
The SolarEdge Nexis Battery Block NX-BLCK-5K-A-01 is a modular battery module for the SolarEdge Nexis storage system. With 4.65 kWh of usable capacity per module, you can configure storage to suit the installation. The SolarEdge Nexis Battery Block works with the Nexis Battery Link and compatible three-phase Nexis inverter.
Each battery stack combines one to four battery modules, making storage capacity easy to scale. The Simple-Click architecture allows the modules to be stacked and connected efficiently. The enclosure has an IP65 rating, while each battery module weighs approximately 55 kg. Installation is possible on the floor or on a wall using the separately available mounting bracket.
With the SolarEdge Nexis Battery Block, you can build a modular SolarEdge storage system that is straightforward to configure and expand, making installation and future adjustments easier.
Specifications
| Item no., supplier | NX-BLCK-5K-A-01 |
|---|---|
| Width (mm) | 668 |
| Brand | SolarEdge |
| Power | 3500 |
| Depth (mm) | 194 |
| Height (mm) | 374 |
| Maximum discharge power (w) | 5300 |
| Nominal DC voltage (Vdc) | 750 |
| GTIN | 1 |
| ADR points | 165
Due to ADR legislation, this item will always be delivered by us and cannot be picked up from us
|
| Amount per pallet | 8 |
| Amount per container | 192 |
