Details

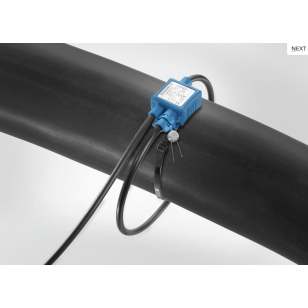

For installing a SolarEdge energy meter with flexible (Rogowski) current coils, you need 1 coil and 1 transducer per phase. For 1 measurement, you need 3 coils, 3 transducers and 1 power supply. Alius delivers flexible (Rogowski) current coils from Weidmýller. These coils can be adjusted via the transducer from 100A to 5000A.
To choose the right current coil, you choose the right diameter, 70mm or 125mm, and the right length of the coil's cable. For all these configurations, you need the modbus meter from SolarEdge. Alius also offers the transducers and power supply plus peripheral items in a fully pre-mounted cabinet, the power control unit.
