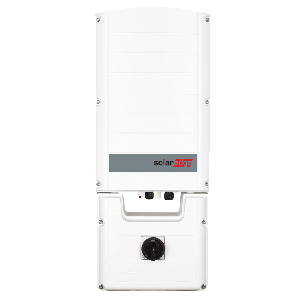

SolarEdge SE33.3K 3-phase inverter
SKU: AE02687 | SE33.3K-RWR0IBNA4 Full
Description
The SolarEdge 33.3K 3-phase inverter offers a fixed voltage for more efficient operation (98.3%) and makes longer strings possible. In addition, the device is small, light and has integrated DC overvoltage protection (type 2) to better withstand lightning strike and other events.
The SE33.3K has optional functions such as RS485 and AC over-voltage protection (type 2). With built-in monitoring at the module level, which communicates via Ethernet, wirelessly or by mobile phone, it offers a complete view of the system. Safety comes first with integrated arc protection and the option for rapid shutdown (optional).
The SolarEdge SE33.3K-RWR0IBNA4 is suitable for both indoor and outdoor installations (IP65-classified), and it offers an optional integrated DC Safety Unit, which makes external DC insulators unnecessary.
Unique properties:
- RSD Rapid Shut Down
- AC/DC overvoltage type II
- DC switch
- DC fuses
- Multiple strings possible: view the datasheet
Specifications
| Brand | SolarEdge |
|---|---|
| Item no., supplier | SE33.3K-RWR0IBNA4 |
| Number of phases | 3 |
| Maximum DC power (W) | 58275 |
| DC connection | Terminal strips |
| Maximum AC current (per phase) (A) | 48.25 |
| Maximum AC power (VA) | 33300 |
| Amount per pallet | 12 |
| Amount per box | 1 |
| Type of solar inverters | SE33, 3K |
| Product warranty | 12 jaar |
